Rheinmetall’s Cutting-Edge Hybrid Approach to Next-Gen Mobile Air Defense Challenges

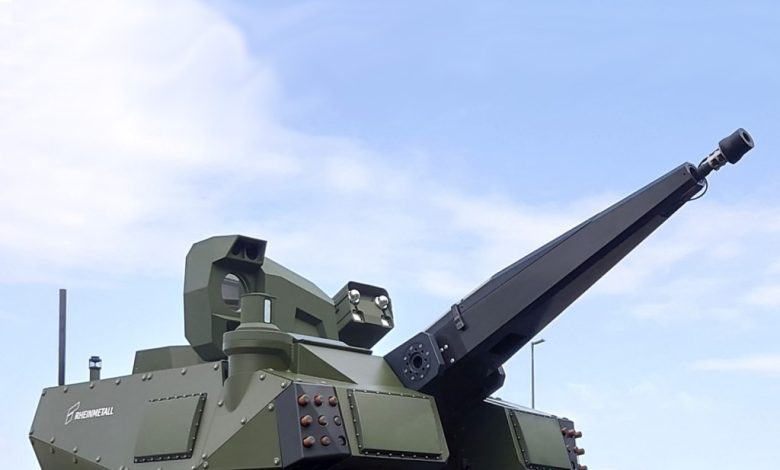

Laser technology on board: The Skyranger 30 HEL represents a hybrid solution crafted to combat the complete spectrum of prospective airborne menaces. In this context, the combination of a 30mm automatic cannon, guided missiles, and a high-energy laser (HEL) creates a blend of effectors that is unparalleled in this configuration. Coupled with a corresponding array of sensors, the Skyranger 30 HEL has the capability to autonomously oversee airspace while simultaneously identifying the most effective response for emerging threats. The Skyranger 30 HEL can safeguard mobile units in motion or crucial stationary infrastructures and facilities against aerial dangers. Regardless of the initial scenario, an appropriate countermeasure is always readily at hand, ensuring compliance with legal standards and minimizing collateral damage.
Leveraging its extensive expertise in the domain of ground-based aerial defense and commitment to a definitive technical blueprint for future laser weapon systems, Rheinmetall adeptly integrates a comprehensive suite of advanced functionalities into wheeled or tracked mobile platforms like the Boxer multipurpose wheeled armored vehicle* or the tracked Lynx KF41 armored vehicle. By utilizing the highly adaptable Skymaster fire control system along with cutting-edge sensors, the effectors deliver optimal tactical effectiveness.
Rheinmetall’s HEL effectors encompass a laser source and a laser guidance apparatus, both of which are embedded in the vehicle, in addition to a laser weapon station integrated in the turret that simultaneously acts as a platform for the electro-optical sensors. The laser weapon station autonomously tracks targets, neutralizing them using a concentrated laser beam. Consequently, the Skyranger 30 HEL can efficiently defend designated airspace with three distinct effectors – an automatic cannon, guided missiles, and a high-energy laser – providing the appropriate intensity of response.
Boasting a firing rate of 1,200 rounds per minute, the 30mmx173 KCE revolver gun stands as the premier weapon globally within this caliber. Programmable time-delay ammunition boosts the likelihood of striking even the most diminutive aerial targets. The guided missiles of the Skyranger 30 HEL augment the system’s operational versatility and extend its range.
In live demonstrations, contemporary technology sample systems for laser weaponry have successfully reached laser outputs of 20kW. The potential to escalate this output to 100kW is already an intrinsic feature of this technology. The laser weapon station employed here is equipped with its own sensors for identifying and tracking targets. Subassemblies coordinated by Rheinmetall ensure harmonious interoperability, yielding the exceptional beam quality of Rheinmetall laser sources even at elevated output levels, allowing for precise targeting. The sophisticated mechanical design of the carrier platform guarantees 100% coverage of the designated airspace. Laser outputs ranging from 20-50 kW are projected for the initial realization phase.
Late last year, the Skyranger HEL made its inaugural public appearance at a counter-drone event organized by the Swiss procurement agency armasuisse in Bure, Switzerland, garnering considerable attention from industry experts present at the venue.
